前情提要

由于自己项目里要做一个效果，大略也是按照坐标从A贴图溶解变为B贴图，但在溶解过程中还需加上边缘效果等，看此插件效果好，功能强大，故阅读之。然其代码由于支持丰富，代码略多，文件繁多，记录一下看的过程略作解释。(顺便把代码都贴到一个页面方便自己查看=v=)

插件地址

https://assetstore.unity.com/packages/vfx/shaders/advanced-dissolve-111598

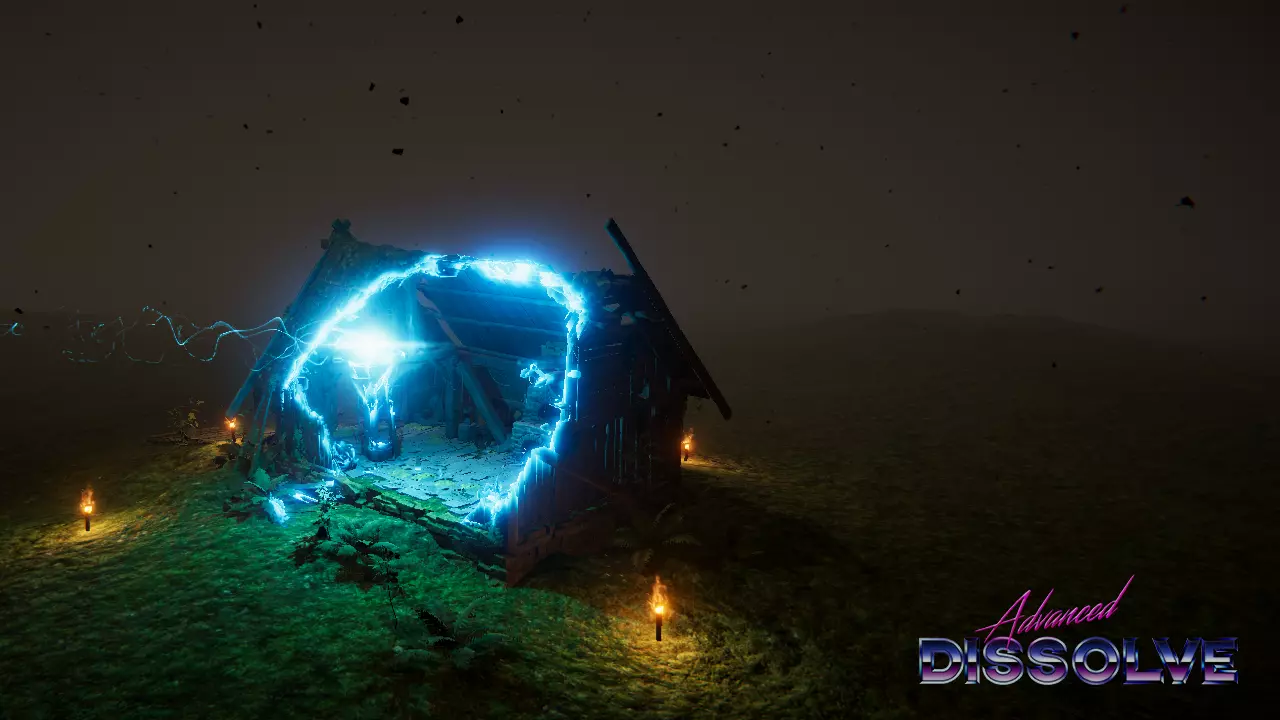

插件效果



组织方式(以XYZ切割那个场景举例)

一开始看会摸不着头脑，故给出一个大略的看的顺序，否则不知控制器在哪儿，shader的参数又是由哪个脚本控制。

- c# part

c#脚本首先看场景上名字带Controller的

Controller_Cutout.cs

  • Controller_Cutout.cs 用cs控制shader/material的切割参数

    如果是global则给material的一系列Global参数赋值，命名为下面的+_Global
    如果不用global就给所有material赋值，大致有

    1
    2
    3
    4
    5
    6
    7
    8
    9
    materials[i].SetTexture("_DissolveMap1", texture1);
    materials[i].SetVector("_DissolveMap1_ST", new Vector4(texture1Tiling.x, texture1Tiling.y, texture1Offset.x, texture1Offset.y));
    materials[i].SetVector("_DissolveMap1_Scroll", texture1Scroll);
    materials[i].SetFloat("_DissolveMap1Intensity", texture1Intensity);
    materials[i].SetFloat("_DissolveMap1Channel", (int)texture1Channel);

    materials[i].SetFloat("_DissolveNoiseStrength", noise);
    materials[i].SetFloat("_DissolveAlphaSourceTexturesUVSet", uvSet == UVSET.UV0 ? 0 : 1);
    materials[i].SetFloat("_DissolveSourceAlphaTexturesBlend", textureBlend == TEXTURE_BLEND.Multiple ? 0 : 1);

Controller_Edge.cs

  • 用cs控制shader/material的边缘参数
    同样分为Global和非Global，主要为:
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    materials[i].SetFloat("_DissolveEdgeWidth", width);
    materials[i].SetFloat("_DissolveEdgeShape", (int)shape);
    materials[i].SetColor("_DissolveEdgeColor", color);
    materials[i].SetFloat("_DissolveEdgeColorIntensity", intensity);

    materials[i].SetTexture("_DissolveEdgeTexture", texture);
    materials[i].SetFloat("_DissolveEdgeTextureReverse", reverse ? 1 : 0);
    materials[i].SetFloat("_DissolveEdgeTextureMipmap", blur);
    materials[i].SetFloat("_DissolveEdgeTextureAlphaOffset", alphaOffset);
    materials[i].SetFloat("_DissolveEdgeTexturePhaseOffset", phaseOffset);
    materials[i].SetFloat("_DissolveEdgeTextureIsDynamic", isDynamic ? 1 : 0);

    materials[i].SetFloat("_DissolveGIMultiplier", GIMultyplier > 0 ? GIMultyplier : 0);

- shader part

找场景上被切了的物体，看它用的哪个shader，比如xyz场景里用的是
Assets/VacuumShaders/Advanced Dissolve/Shaders/Physically Based/Specular.shader

Properties

  • shader part - Properties
    先来看它的Properties:
    首先是Specular常见的贴图和参数

    1
    2
    3
    4
    5
    6
    7
    8
    9
    _Color ("Color", Color) = (1,1,1,1)
    _MainTex ("Albedo (RGBA)", 2D) = "white" {}

    _BumpMap("Normalmap", 2D) = "bump" {}
    _Glossiness ("Smoothness", Range(0,1)) = 0.5
    _Specular("Specular", Range(0,1)) = 0.0
    [Enum(Main Map Alpha,0,Specular Map Alpha,1)] _SpecularAlpha("   Source", Float) = 0
    _SpecularColor("   Specular Color", Color) = (0.2,0.2,0.2)
    _SpecularMap("   Specular Map (RGBA)", 2D) = "white" {}

    然后是溶解常用参数，以及上面c#去控制的，在mat面板被隐藏的参数，我只放一个贴图相关的参数，其实插件支持几张图

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    [Cutout]_Cutoff("   Alpha Cutoff", Range(0,1)) = 0.5

    //Mask
    [HideInInspector][KeywordEnum(None, XYZ Axis, Plane, Sphere, Box, Cylinder, Cone)]  _DissolveMask("Mak", Float) = 0
    [HideInInspector][Enum(X,0,Y,1,Z,2)]     _DissolveMaskAxis("Axis", Float) = 0
    [HideInInspector][Enum(World,0,Local,1)] _DissolveMaskSpace("Space", Float) = 0
    [HideInInspector] _DissolveMaskOffset("Offset", Float) = 0
    [HideInInspector] _DissolveMaskInvert("Invert", Float) = 1
    [HideInInspector][KeywordEnum(One, Two, Three, Four)] _DissolveMaskCount("Count", Float) = 0

    [HideInInspector]  _DissolveMaskPosition("", Vector) = (0,0,0,0)
    [HideInInspector]  _DissolveMaskNormal("", Vector) = (1,0,0,0)
    [HideInInspector]  _DissolveMaskRadius("", Float) = 1

    //Alpha Source
    [HideInInspector] [KeywordEnum(Main Map Alpha, Custom Map, Two Custom Maps, Three Custom Maps)] _DissolveAlphaSource("Alpha Source", Float) = 0
    [HideInInspector] _DissolveMap1("", 2D) = "white" { }
    [HideInInspector] [UVScroll] _DissolveMap1_Scroll("", Vector) = (0,0,0,0)
    [HideInInspector] _DissolveMap1Intensity("", Range(0, 1)) = 1
    [HideInInspector] [Enum(Red, 0, Green, 1, Blue, 2, Alpha, 3)] _DissolveMap1Channel("", INT) = 3

    //Edge
    [HideInInspector] _DissolveEdgeWidth("Edge Size", Range(0,1)) = 0.25
    [HideInInspector][Enum(Cutout Source,0,Main Map,1)]     _DissolveEdgeDistortionSource("Distortion Source", Float) = 0
    [HideInInspector] _DissolveEdgeDistortionStrength("Distortion Strength", Range(0, 2)) = 0

    //Color
    [HideInInspector] _DissolveEdgeColor("Edge Color", Color) = (0,1,0,1)
    [HideInInspector][PositiveFloat] _DissolveEdgeColorIntensity("Intensity", FLOAT) = 0
    [HideInInspector][Enum(Solid,0,Smooth,1, Smooth Squared,2)]      _DissolveEdgeShape("Shape", INT) = 0

    [HideInInspector][KeywordEnum(None, Gradient, Main Map, Custom)] _DissolveEdgeTextureSource("", Float) = 0
    [HideInInspector][NoScaleOffset] _DissolveEdgeTexture("Edge Texture", 2D) = "white" { }
    [HideInInspector][Toggle] _DissolveEdgeTextureReverse("Reverse", FLOAT) = 0
    [HideInInspector] _DissolveEdgeTexturePhaseOffset("Offset", FLOAT) = 0
    [HideInInspector] _DissolveEdgeTextureAlphaOffset("Offset", Range(-1, 1)) = 0
    [HideInInspector] _DissolveEdgeTextureMipmap("", Range(0, 10)) = 1
    [HideInInspector][Toggle] _DissolveEdgeTextureIsDynamic("", Float) = 0

shader part 入口

  • shader part - funcs入口
    每个pass下都有

    1
    2
    #pragma vertex vert_surf
    #pragma fragment frag_surf

    文章后面会主要看一个pass的vert & frag

    1
    2
    v2f_surf vert_surf
    void frag_surf

  • shader part - cginc
    自定义引用

    1
    2
    #include "../cginc/AdvancedDissolve.cginc"
    #include "../cginc/Integration_CurvedWorld.cginc"

shader part 实现

  • shader part - 具体实现

    • vert_surf 各种给frag需要的坐标做准备

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
      33
      34
      35
      36
      37
      38
      39
      40
      41
      42
      43
      44
      45
      46
      47
      48
      49
      50
      51
      52
      53
      54
      55
      56
      57
      58
      59
      60
      v2f_surf vert_surf (appdata_full v) {
          UNITY_SETUP_INSTANCE_ID(v);
          v2f_surf o;
          UNITY_INITIALIZE_OUTPUT(v2f_surf,o);
          UNITY_TRANSFER_INSTANCE_ID(v,o);
          UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);


          CURVED_WORLD_TRANSFORM_POINT_AND_NORMAL(v.vertex, v.normal, v.tangent)


          o.pos = UnityObjectToClipPos(v.vertex);
          o.pack0.xy = TRANSFORM_TEX(v.texcoord, _MainTex);
          o.pack0.zw = TRANSFORM_TEX(v.texcoord, _BumpMap);
          o.pack1.xy = TRANSFORM_TEX(v.texcoord, _SpecularMap);
          float3 worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
          float3 worldNormal = UnityObjectToWorldNormal(v.normal);
          fixed3 worldTangent = UnityObjectToWorldDir(v.tangent.xyz);
          fixed tangentSign = v.tangent.w * unity_WorldTransformParams.w;
          fixed3 worldBinormal = cross(worldNormal, worldTangent) * tangentSign;
          o.tSpace0 = float4(worldTangent.x, worldBinormal.x, worldNormal.x, worldPos.x);
          o.tSpace1 = float4(worldTangent.y, worldBinormal.y, worldNormal.y, worldPos.y);
          o.tSpace2 = float4(worldTangent.z, worldBinormal.z, worldNormal.z, worldPos.z);
          #ifdef DYNAMICLIGHTMAP_ON
          o.lmap.zw = v.texcoord2.xy * unity_DynamicLightmapST.xy + unity_DynamicLightmapST.zw;
          #endif
          #ifdef LIGHTMAP_ON
          o.lmap.xy = v.texcoord1.xy * unity_LightmapST.xy + unity_LightmapST.zw;
          #endif

          // SH/ambient and vertex lights
          #ifndef LIGHTMAP_ON
              #if UNITY_SHOULD_SAMPLE_SH && !UNITY_SAMPLE_FULL_SH_PER_PIXEL
              o.sh = 0;
              // Approximated illumination from non-important point lights
              #ifdef VERTEXLIGHT_ON
                  o.sh += Shade4PointLights (
                  unity_4LightPosX0, unity_4LightPosY0, unity_4LightPosZ0,
                  unity_LightColor[0].rgb, unity_LightColor[1].rgb, unity_LightColor[2].rgb, unity_LightColor[3].rgb,
                  unity_4LightAtten0, worldPos, worldNormal);
              #endif
              o.sh = ShadeSHPerVertex (worldNormal, o.sh);
              #endif
          #endif // !LIGHTMAP_ON

          UNITY_TRANSFER_LIGHTING(o,v.texcoord1.xy); // pass shadow and, possibly, light cookie coordinates to pixel shader
          #ifdef FOG_COMBINED_WITH_TSPACE
              UNITY_TRANSFER_FOG_COMBINED_WITH_TSPACE(o,o.pos); // pass fog coordinates to pixel shader
          #elif defined (FOG_COMBINED_WITH_WORLD_POS)
              UNITY_TRANSFER_FOG_COMBINED_WITH_WORLD_POS(o,o.pos); // pass fog coordinates to pixel shader
          #else
              UNITY_TRANSFER_FOG(o,o.pos); // pass fog coordinates to pixel shader
          #endif

          //注意这里
          //VacuumShaders
          ADVANCED_DISSOLVE_INIT_DATA(o.pos, v.texcoord.xy, v.texcoord1.xy, o)

          return o;
      }

    • ADVANCED_DISSOLVE_INIT_DATA (in AdvancedDissolve.cginc)

      1
      2
      3
      4
      5
      #ifdef _DISSOLVEMAPPINGTYPE_TRIPLANAR
          #define ADVANCED_DISSOLVE_INIT_DATA(positionCS, texcoord0, texcoord1, output) output.dissolveUV = 0;
      #else
          #define ADVANCED_DISSOLVE_INIT_DATA(positionCS, texcoord0, texcoord1, output) DissolveVertex2Fragment(positionCS, texcoord0.xy, texcoord1.xy, output.dissolveUV);
      #endif

    • DissolveVertex2Fragment

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      inline void DissolveVertex2Fragment(float4 positionCS, float2 vertexUV0, float2 vertexUV1, inout float4 dissolveMapUV)
      {
          dissolveMapUV = 0;

          #if defined(_DISSOLVEMAPPINGTYPE_SCREEN_SPACE)
              dissolveMapUV = ComputeScreenPos(positionCS);
          #else

              #if defined(_DISSOLVEALPHASOURCE_CUSTOM_MAP) || defined(_DISSOLVEALPHASOURCE_TWO_CUSTOM_MAPS) || defined(_DISSOLVEALPHASOURCE_THREE_CUSTOM_MAPS)
                  float2 texUV = VALUE_UVSET == 0 ? vertexUV0 : vertexUV1;

                  dissolveMapUV = float4(texUV.xy, 0, 0);
              #endif
          #endif
      }

    • frag

      1
      2
      3
      4
      5
      6
      7
      8
      9
      10
      11
      12
      13
      14
      15
      16
      17
      18
      19
      20
      21
      22
      23
      24
      25
      26
      27
      28
      29
      30
      31
      32
      33
      34
      35
      36
      37
      38
      39
      40
      41
      42
      43
      44
      45
      46
      47
      48
      49
      50
      51
      52
      53
      54
      55
      56
      57
      58
      59
      60
      61
      62
      63
      64
      65
      66
      67
      68
      69
      70
      71
      72
      73
      74
      75
      76
      77
      78
      79
      80
      81
      82
      83
      84
      85
      86
      87
      88
      89
      90
      91
      92
      93
      94
      95
      96
      97
      98
      99
      100
      101
      102
      103
      104
      105
      106
      107
      108
      109
      110
      111
      112
      113
      114
      115
      116
      117
      118
      119
      120
      121
      122
      123
      fixed4 frag_surf (v2f_surf IN) : SV_Target {
          UNITY_SETUP_INSTANCE_ID(IN);


          float3 worldPos = float3(IN.tSpace0.w, IN.tSpace1.w, IN.tSpace2.w);
          float3 normalWS = float3(IN.tSpace0.z, IN.tSpace1.z, IN.tSpace2.z);
          //!!! 这边就是计算切割了，沿着这个方法往下查
          float4 alpha = AdvancedDissolveGetAlpha(IN.pack0.xy, worldPos, normalWS, IN.dissolveUV);
          // alpha算出来.a 范围为-1 or 0~1
          DoDissolveClip(alpha);

          float3 dissolveAlbedo = 0;
          float3 dissolveEmission = 0;

          // 1 alpha  2 - 3-  4 : _MainTex
          float dissolveBlend = DoDissolveAlbedoEmission(alpha, dissolveAlbedo, dissolveEmission, IN.pack0.xy, 0);


          //下面几乎都是正常的pbr光照
          // prepare and unpack data
          Input surfIN;
          #ifdef FOG_COMBINED_WITH_TSPACE
              UNITY_EXTRACT_FOG_FROM_TSPACE(IN);
          #elif defined (FOG_COMBINED_WITH_WORLD_POS)
              UNITY_EXTRACT_FOG_FROM_WORLD_POS(IN);
          #else
              UNITY_EXTRACT_FOG(IN);
          #endif
          #ifdef FOG_COMBINED_WITH_TSPACE
              UNITY_RECONSTRUCT_TBN(IN);
          #else
              UNITY_EXTRACT_TBN(IN);
          #endif
          UNITY_INITIALIZE_OUTPUT(Input,surfIN);
          surfIN.uv_MainTex.x = 1.0;
          surfIN.uv_BumpMap.x = 1.0;
          surfIN.uv_SpecularMap.x = 1.0;
          surfIN.uv_MainTex = IN.pack0.xy;
          surfIN.uv_BumpMap = IN.pack0.zw;
          surfIN.uv_SpecularMap = IN.pack1.xy;
          #ifndef USING_DIRECTIONAL_LIGHT
              fixed3 lightDir = normalize(UnityWorldSpaceLightDir(worldPos));
          #else
              fixed3 lightDir = _WorldSpaceLightPos0.xyz;
          #endif
          float3 worldViewDir = normalize(UnityWorldSpaceViewDir(worldPos));
          #ifdef UNITY_COMPILER_HLSL
          SurfaceOutputStandardSpecular o = (SurfaceOutputStandardSpecular)0;
          #else
          SurfaceOutputStandardSpecular o;
          #endif
          o.Albedo = 0.0;
          o.Emission = 0.0;
          o.Specular = 0.0;
          o.Alpha = 0.0;
          o.Occlusion = 1.0;
          fixed3 normalWorldVertex = fixed3(0,0,1);
          o.Normal = fixed3(0,0,1);

          // call surface function
          surf (surfIN, o);

          //这两句就是边缘着色了，另一篇讲溶解的介绍里也有: https://blog.csdn.net/w9503/article/details/105321355?utm_medium=distribute.pc_relevant.none-task-blog-title-2&spm=1001.2101.3001.4242
          o.Albedo = lerp(o.Albedo, dissolveAlbedo, dissolveBlend);
          o.Emission = lerp(o.Emission, dissolveEmission, dissolveBlend);


          // compute lighting & shadowing factor
          UNITY_LIGHT_ATTENUATION(atten, IN, worldPos)
          fixed4 c = 0;
          float3 worldN;
          worldN.x = dot(_unity_tbn_0, o.Normal);
          worldN.y = dot(_unity_tbn_1, o.Normal);
          worldN.z = dot(_unity_tbn_2, o.Normal);
          worldN = normalize(worldN);
          o.Normal = worldN;

          // Setup lighting environment
          UnityGI gi;
          UNITY_INITIALIZE_OUTPUT(UnityGI, gi);
          gi.indirect.diffuse = 0;
          gi.indirect.specular = 0;
          gi.light.color = _LightColor0.rgb;
          gi.light.dir = lightDir;
          // Call GI (lightmaps/SH/reflections) lighting function
          UnityGIInput giInput;
          UNITY_INITIALIZE_OUTPUT(UnityGIInput, giInput);
          giInput.light = gi.light;
          giInput.worldPos = worldPos;
          giInput.worldViewDir = worldViewDir;
          giInput.atten = atten;
          #if defined(LIGHTMAP_ON) || defined(DYNAMICLIGHTMAP_ON)
              giInput.lightmapUV = IN.lmap;
          #else
              giInput.lightmapUV = 0.0;
          #endif
          #if UNITY_SHOULD_SAMPLE_SH && !UNITY_SAMPLE_FULL_SH_PER_PIXEL
              giInput.ambient = IN.sh;
          #else
              giInput.ambient.rgb = 0.0;
          #endif
          giInput.probeHDR[0] = unity_SpecCube0_HDR;
          giInput.probeHDR[1] = unity_SpecCube1_HDR;
          #if defined(UNITY_SPECCUBE_BLENDING) || defined(UNITY_SPECCUBE_BOX_PROJECTION)
              giInput.boxMin[0] = unity_SpecCube0_BoxMin; // .w holds lerp value for blending
          #endif
          #ifdef UNITY_SPECCUBE_BOX_PROJECTION
              giInput.boxMax[0] = unity_SpecCube0_BoxMax;
              giInput.probePosition[0] = unity_SpecCube0_ProbePosition;
              giInput.boxMax[1] = unity_SpecCube1_BoxMax;
              giInput.boxMin[1] = unity_SpecCube1_BoxMin;
              giInput.probePosition[1] = unity_SpecCube1_ProbePosition;
          #endif
          LightingStandardSpecular_GI(o, giInput, gi);

          // realtime lighting: call lighting function
          c += LightingStandardSpecular (o, worldViewDir, gi);
          c.rgb += o.Emission;

          UNITY_APPLY_FOG(_unity_fogCoord, c); // apply fog
          //!!!
          return DoOutputForward(c, o.Alpha);
      }

    • frag 引用
      关键词:

      • AdvancedDissolveGetAlpha
      • DoDissolveClip
      • DoDissolveAlbedoEmission

      • DoOutputForward
        一个个来

        • AdvancedDissolveGetAlpha

          1
          2
          3
          4
          5
          6
          7
          8
          9
          10
          11
          12
          // texcoord0: mainTex的texcorrd
          // positionWS: worldPos
          // normalWS: worldNormal
          // dissolveUV: vert里算完的dissolveUV
          float4 AdvancedDissolveGetAlpha(float2 texcoord0, float3 positionWS, float3 normalWS, float4 dissolveUV)
          {
              #ifdef _DISSOLVEMAPPINGTYPE_TRIPLANAR
                  return ReadDissolveAlpha_Triplanar(positionWS, normalWS);
              #else
                  return ReadDissolveAlpha(texcoord0, dissolveUV, positionWS);
              #endif
          }

        • ReadDissolveAlpha (简化版，源代码中有诸多#ifdef,不便于阅读,故采取当前用到的展示)

          1
          2
          3
          4
          5
          6
          7
          8
          9
          10
          11
          //注意AdvancedDissolve.cginc引用了Variables.cginc，代码中的变量在Variables里找
          inline float4 ReadDissolveAlpha(float2 mainTexUV, float4 dissolveMapUV, float3 vertexPos)
          {
              float4 alphaSource = 1;
              float2 uv1 = dissolveMapUV.xy * VALUE_MAP1_ST.xy + VALUE_MAP1_ST.zw + VALUE_MAP1_SCROLL.xy * TIME;
              alphaSource = READ_TEXTURE_2D(VALUE_MAP1, VALUE_MAP1_SAMPLER, uv1, VALUE_MAP1_INTENSITY);
              alphaSource.a = alphaSource[VALUE_MAP1_CHANNEL];
              float noise = ((alphaSource.a - 0.5) * 2) * VALUE_NOISE_STRENGTH;
              alphaSource.a = ReadMaskValue(vertexPos, noise);
              return alphaSource;
          }

        • Variables.cginc

          1
          2
          3
          4
          5
          6
          7
          8
          9
          10
          11
          12
          #define VALUE_MAIN_MAP_TILING   _DissolveMainMapTiling
          // texture1
          #define VALUE_MAP1              _DissolveMap1
          #define VALUE_MAP1_SAMPLER      sampler_DissolveMap1
          // tilling offset那个东西
          #define VALUE_MAP1_ST           _DissolveMap1_ST
          //vector3, 用的xy
          #define VALUE_MAP1_SCROLL       _DissolveMap1_Scroll
          //float 0~1
          #define VALUE_MAP1_INTENSITY    _DissolveMap1Intensity
          //rgba
          #define VALUE_MAP1_CHANNEL      _DissolveMap1Channel

        • 结合上两个翻译版:

          1
          2
          3
          4
          5
          6
          7
          8
          9
          10
          11
          12
          13
          14
          15
          16
          17
          18
          19
          20
          21
          22
          23
          24
          25
          26
          27
          28
          29
          inline float4 ReadDissolveAlpha(float2 mainTexUV, float4 dissolveMapUV, float3 vertexPos)
          {
              float4 alphaSource = 1;
              float2 uv1 = dissolveMapUV.xy * _DissolveMap1_ST.xy + _DissolveMap1_ST.zw + _DissolveMap1_Scroll.xy * TIME;
              alphaSource = READ_TEXTURE_2D(_DissolveMap1, sampler_DissolveMap1, uv1, _DissolveMap1Intensity);
              alphaSource.a = alphaSource[_DissolveMap1Channel];
              float noise = ((alphaSource.a - 0.5) * 2) * VALUE_NOISE_STRENGTH;
              alphaSource.a = ReadMaskValue(vertexPos, noise);
              return alphaSource;
          }


          inline float ReadMaskValue(float3 vertexPos, float noise)
          {
              float cutout = -1;

              //world 0 or local 1
              //if(VALUE_MASK_SPACE > 0.5)
              vertexPos = mul(unity_WorldToObject, float4(vertexPos, 1)).xyz;
              //VALUE_CUTOFF_AXIS: X:0 Y Z
              // VALUE_MASK_OFFSET: _DissolveMaskOffset
              // INVERT: 1 or -1 正反方向
              cutout = (vertexPos - VALUE_MASK_OFFSET)[(int)VALUE_CUTOFF_AXIS] * VALUE_AXIS_INVERT;

              cutout += noise;
              return (cutout > 0 ? cutout : -1);
          }

          #define READ_TEXTURE_2D(t,s,uv,i)        saturate(tex2D(t, (uv).xy) + (1 - i).xxxx)
